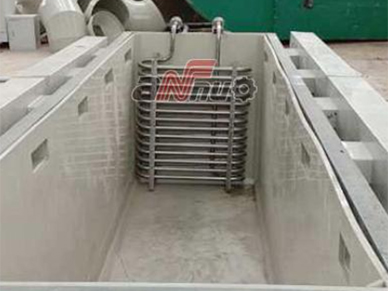

Flue Gas Heat Economizer – Waste Heat Recovery System for Hot Dip Galvanizing

The flue gas heat economizer is a hot dip galvanizing equipment designed specifically for hot dip galvanizing plants. It captures residual heat from the galvanizing furnace flue gas before it is released into the atmosphere, and reuses that thermal energy to heat the flux (pre-treatment solvent) tank — reducing fuel consumption and lowering the plant's overall energy costs.

In a typical hot dip galvanizing line, flue gas leaves the heating furnace at temperatures of around 350–400°C, carrying a large amount of recoverable thermal energy that would otherwise be released into the atmosphere. Our waste heat recovery system extracts this energy through a corrosion-resistant tube heat exchanger mounted directly on the furnace flue, converting it into usable hot water for process heating.

Key Benefits

• High heat recovery efficiency — flue gas heat exchangers of this type typically recover 50–70% of the available waste heat in the furnace exhaust
• Lower fuel and energy costs — recovered heat reduces or eliminates the need for separate fuel/electric heating of the flux tank, cutting auxiliary energy consumption
• Reasonable payback period — industrial flue gas heat recovery systems generally pay back their investment within 2–5 years, depending on furnace size, fuel cost, and operating hours
• Reduced emissions — less auxiliary fuel burned means lower CO₂ and flue gas emissions, supporting environmental compliance
• Stable process temperature — maintains flux tank temperature at 65°C ± 5°C automatically via closed-loop temperature control
• Corrosion-resistant design — components are built to withstand the acidic, zinc-particle-laden flue gas environment typical of galvanizing lines

Waste-heat Utilization Unit

Components: Tube heat exchanger, PP radiator, Expansion Tank, Hot water circulation Pump, Water softener, pipe fittings, Temperature control system, Electric control cabinet

How It Works

1. The tubular heat exchanger is installed directly on the galvanizing furnace flue, where flue gas heat-exchange temperature reaches 90–100°C at the exchanger surface.
2. The hot water circulation pump draws heated water from the exchanger into an expansion tank, which buffers pressure and volume changes in the closed-loop system.
3. Hot water then flows into the PP radiator, where heat is transferred to the flux (pretreatment solvent) tank.
4. A temperature control system continuously monitors and regulates flow, keeping the solvent tank at a stable 65°C ± 5°C without manual adjustment.
5. A water softener protects the system from scale buildup, extending equipment service life and maintaining heat-transfer efficiency over time.

Technical Specifications

Actual performance and payback period vary based on furnace size, flue gas volume, fuel type, and plant operating hours. Contact us for a configuration and estimate tailored to your production line.

Frequently Asked Questions

What is a flue gas heat economizer used for in hot dip galvanizing?

It recovers waste heat from the galvanizing furnace's flue gas — typically released at 350–400°C — and reuses it to heat the flux pretreatment tank, reducing the amount of fuel needed to maintain process temperature.

Is the system suitable for corrosive or zinc-laden flue gas?

Yes. The heat exchanger and associated piping are built from corrosion-resistant materials to withstand the acidic, particle-laden flue gas conditions typical of hot dip galvanizing lines.

How much energy can a waste heat recovery system save?

Flue gas heat exchangers of this type typically recover 50–70% of the available waste heat, which can significantly reduce or eliminate the need for separate fuel or electric heating of the flux tank. Actual savings depend on furnace size and operating hours.

What is the typical payback period for this type of system?

Based on industry data, flue gas waste heat recovery systems for galvanizing furnaces generally pay back their investment within 2–5 years, depending on furnace size, fuel costs, and daily operating hours.

Can this be retrofitted onto an existing galvanizing furnace?

Yes, the heat economizer is typically installed on the existing furnace flue without requiring major modification to the furnace itself.

See how this system has been implemented in real galvanizing plants in our project case studies.
